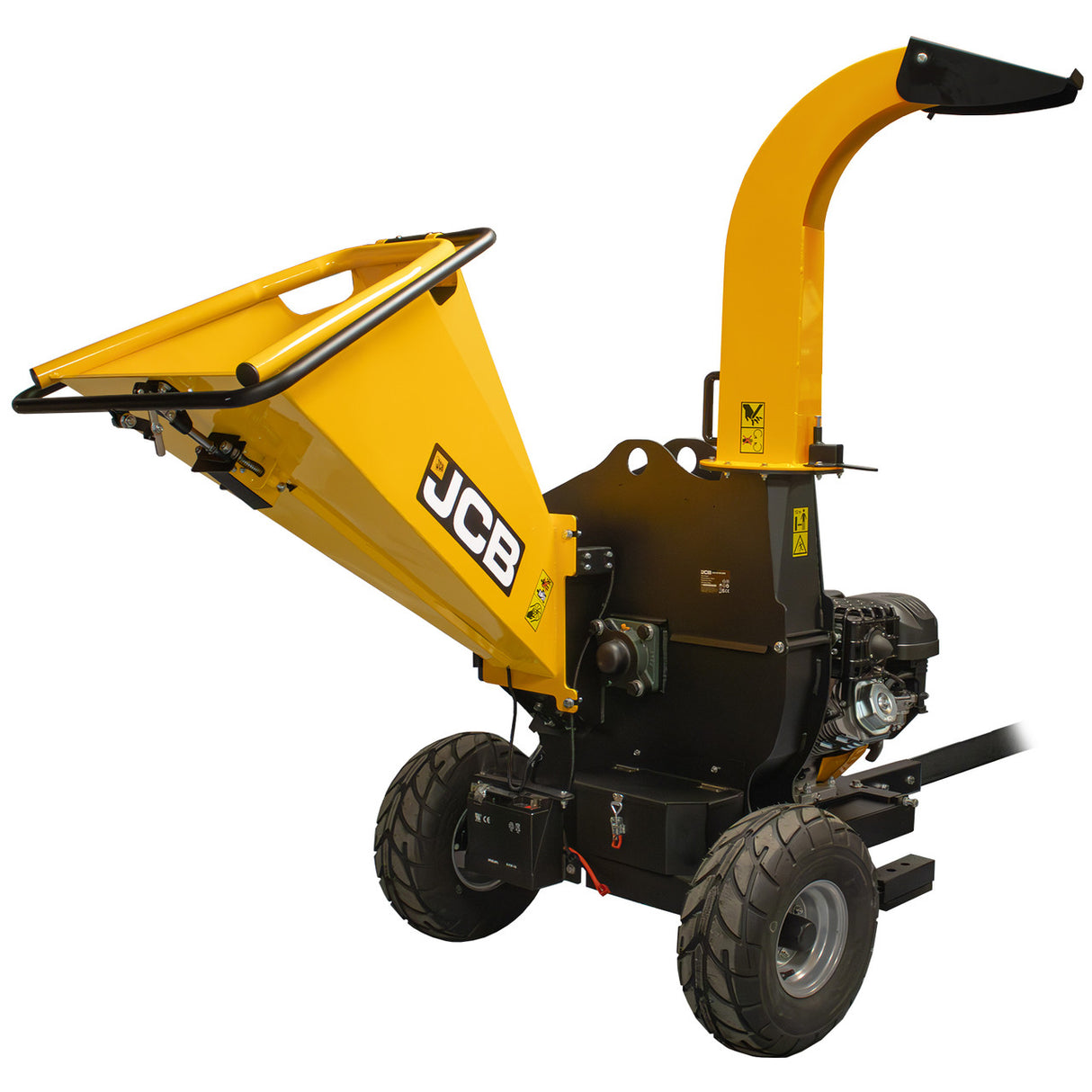

JCB 120mm / 4.72” Heavy-duty Petrol Wood Chipper 457cc, 15hp 4-Stroke, Electric Start | JCB-CH150120PE
Loading delivery estimate…
*Exact delivery dates are calculated at checkout depending on your delivery postcode.
JCB 120mm / 4.72” Heavy-duty Petrol Wood Chipper 457cc, 15hp 4-Stroke, Electric Start | JCB-CH150120PE is backordered and will ship as soon as it is back in stock.
Trade Club members only. Join free to unlock prices and checkout.
JCB 120mm / 4.72” Heavy-duty Petrol Wood Chipper 457cc, 15hp 4-Stroke, Electric Start | JCB-CH150120PE is backordered and will ship as soon as it is back in stock.
Product Details
Description

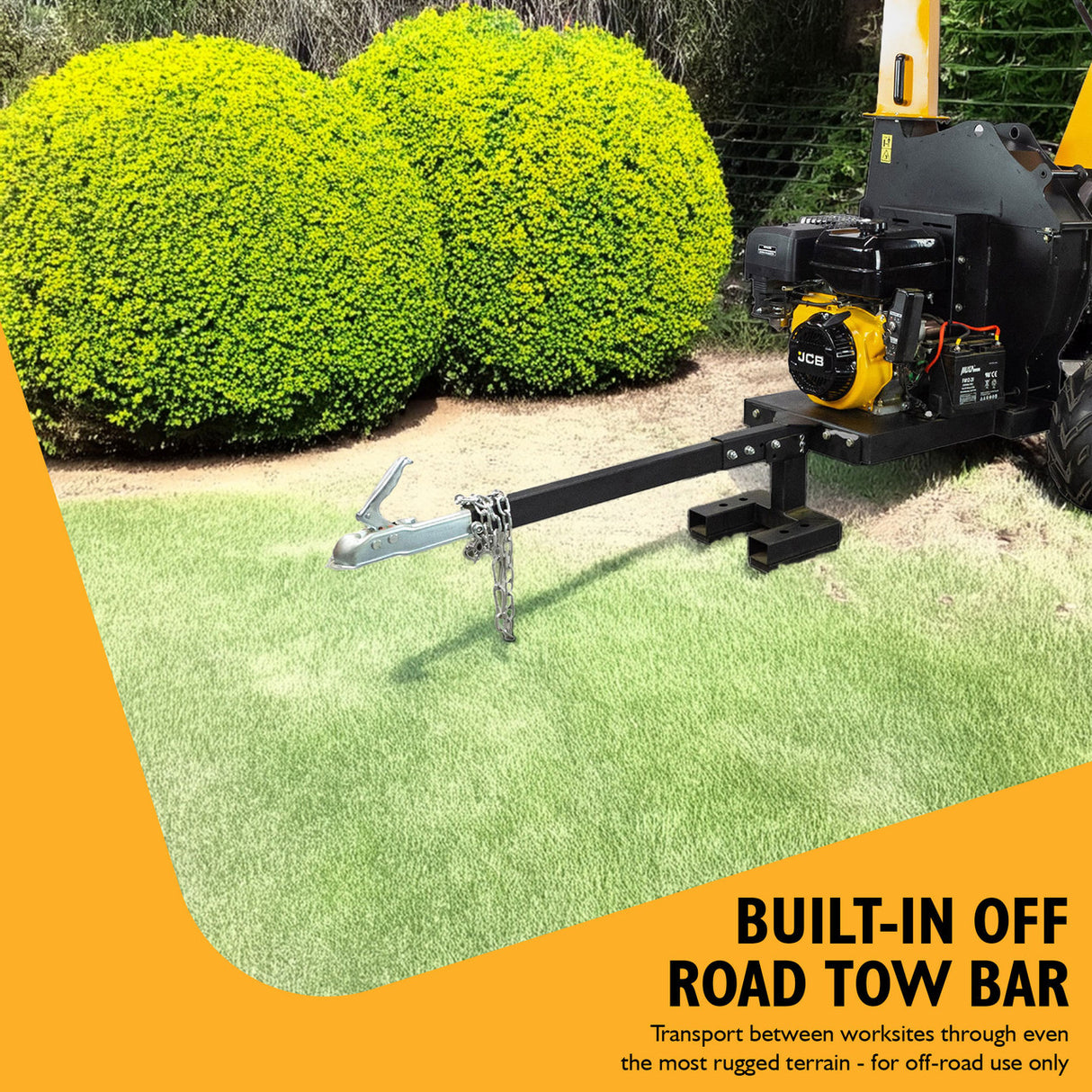

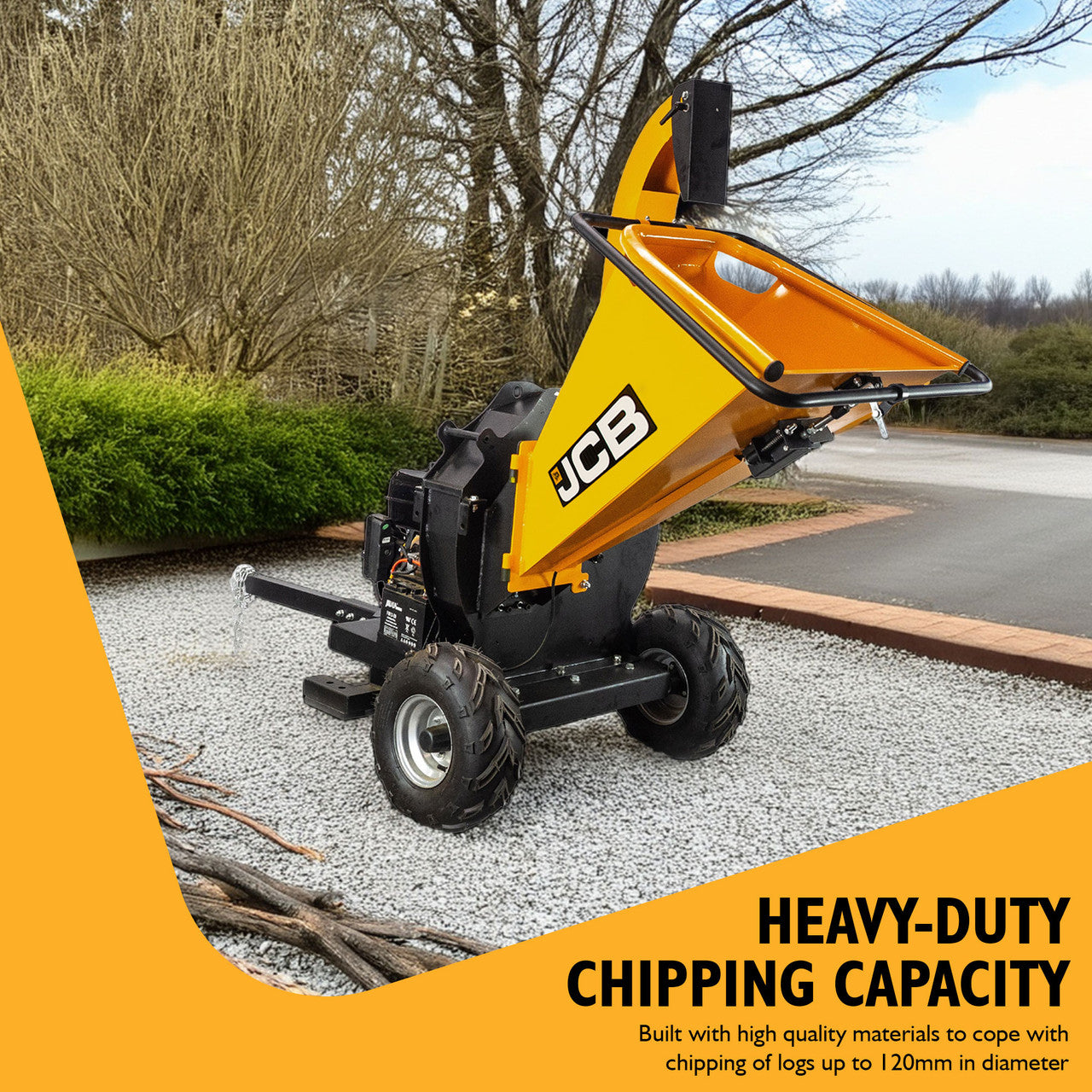

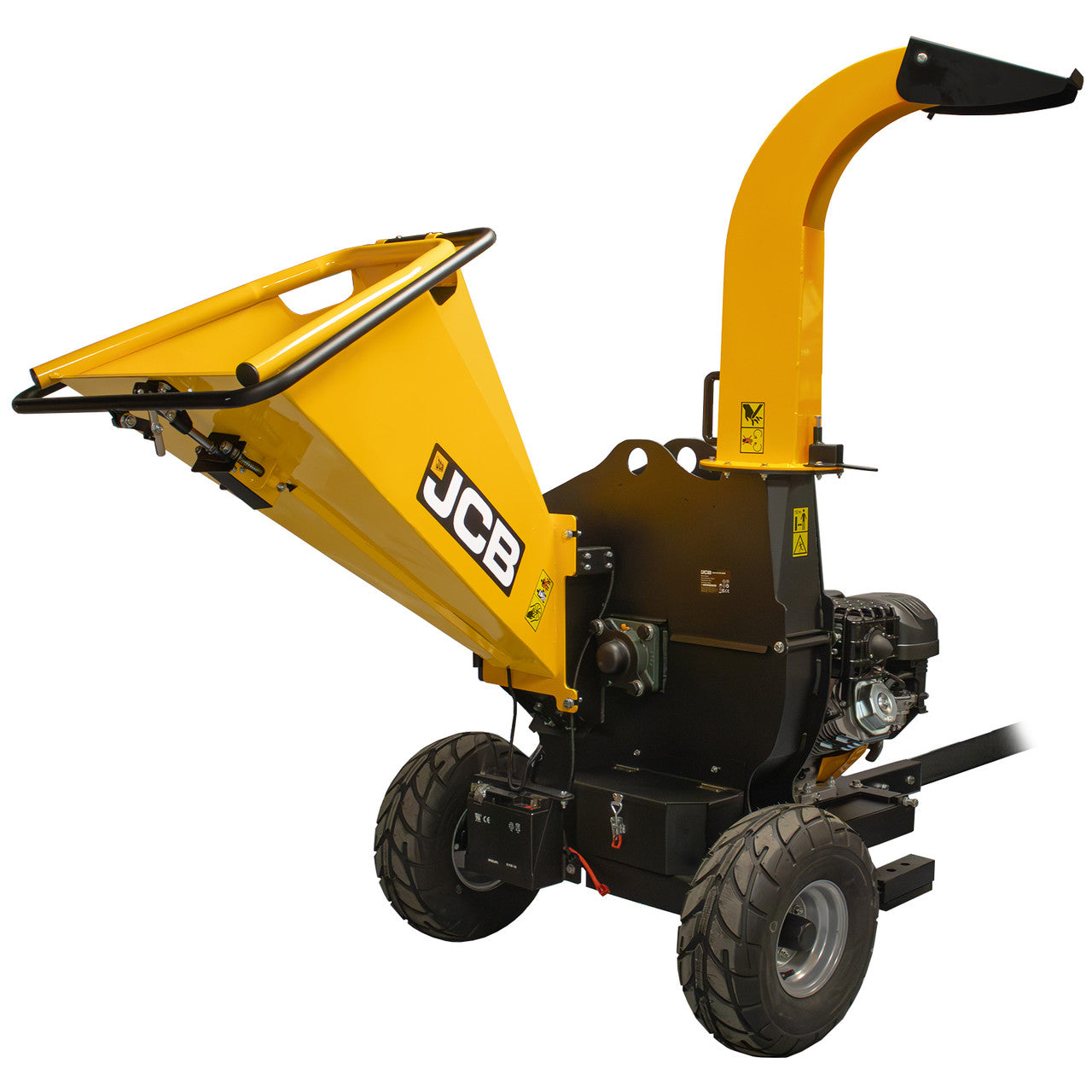

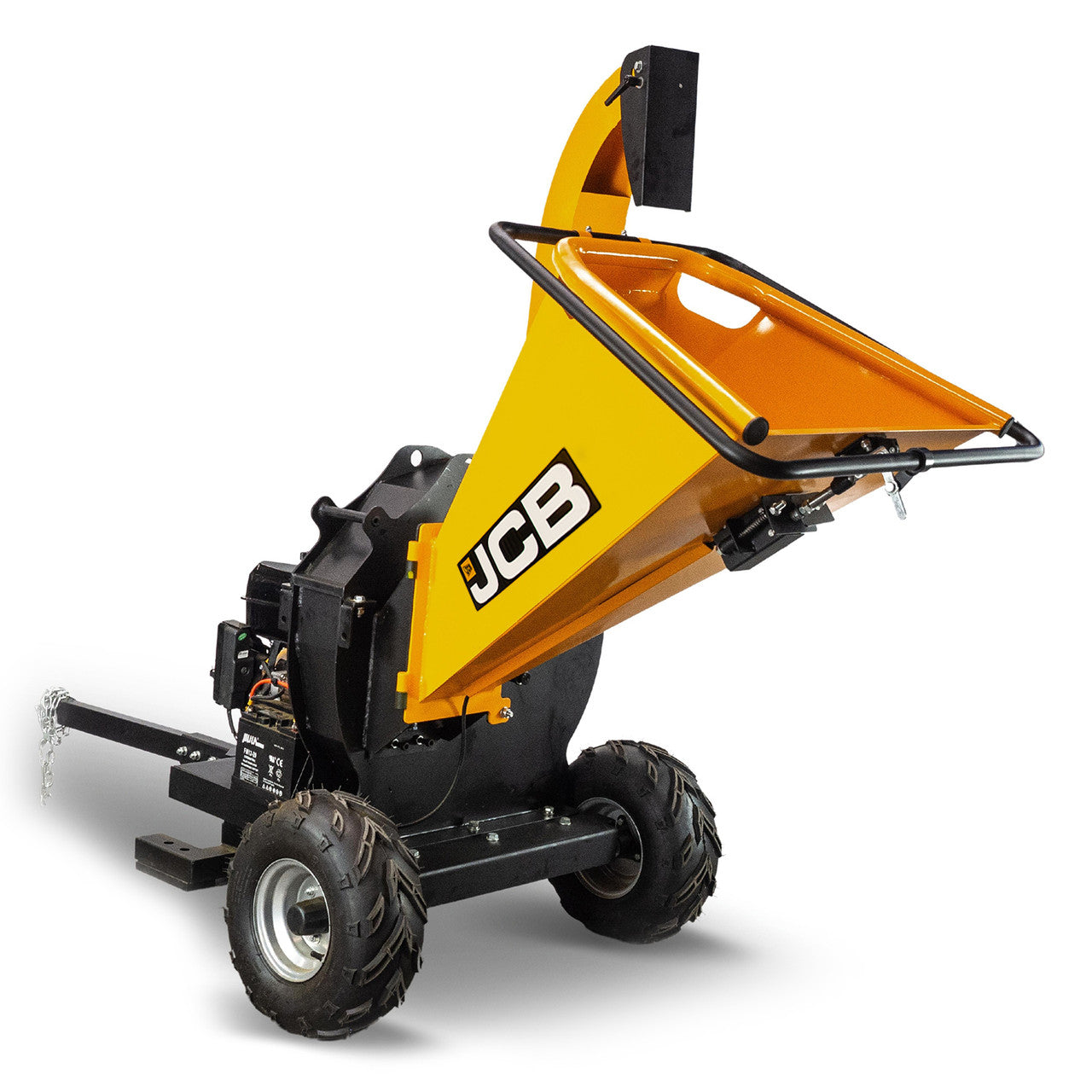

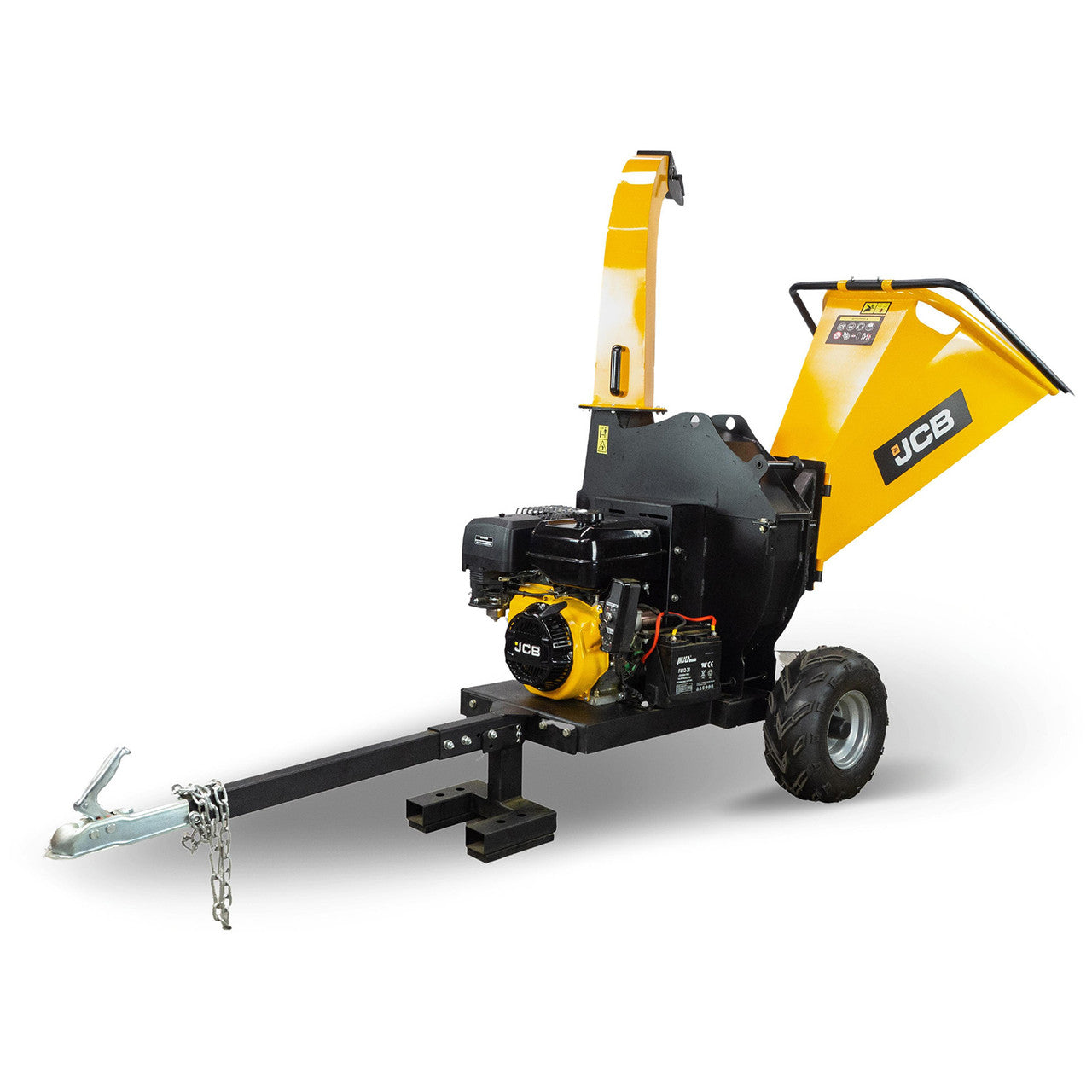

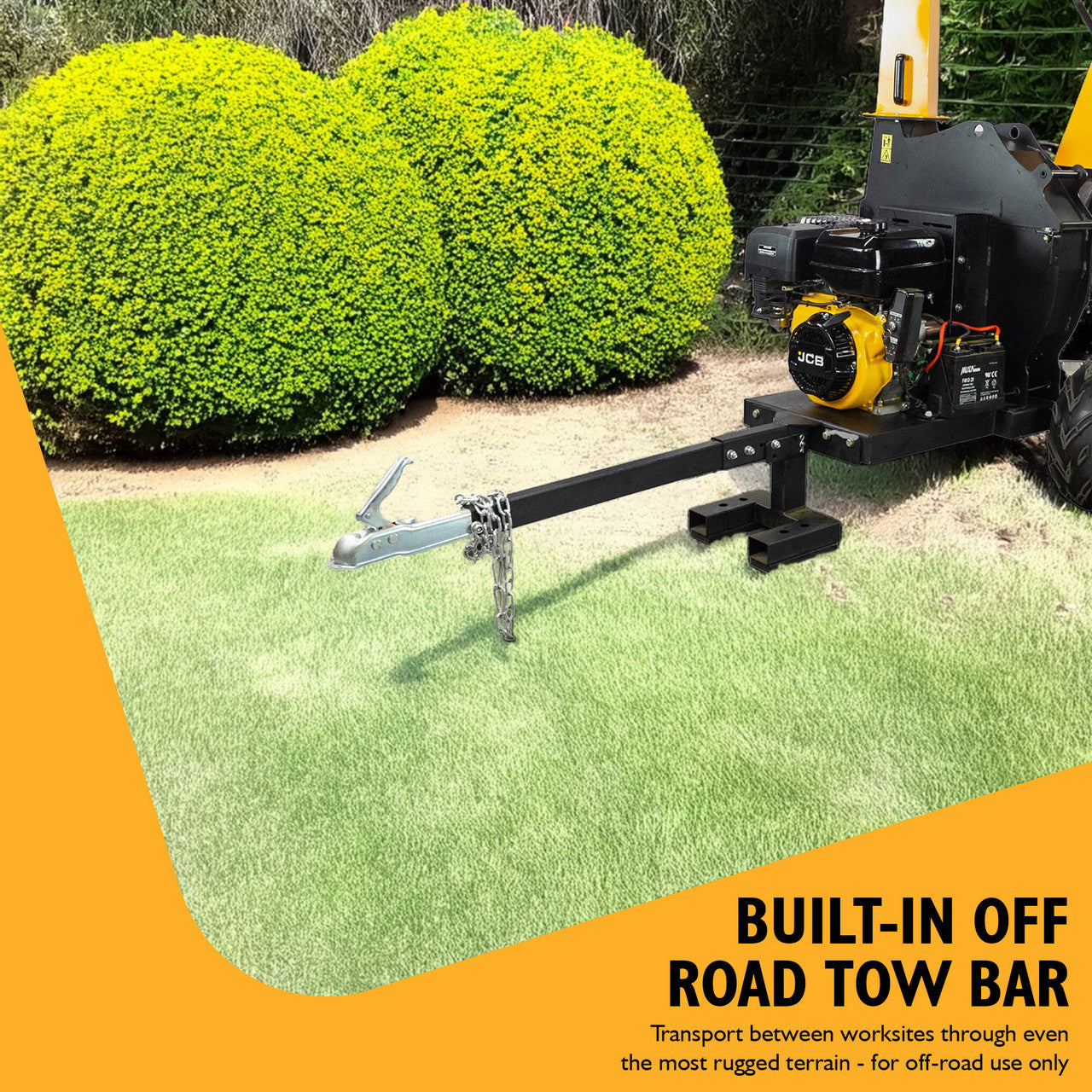

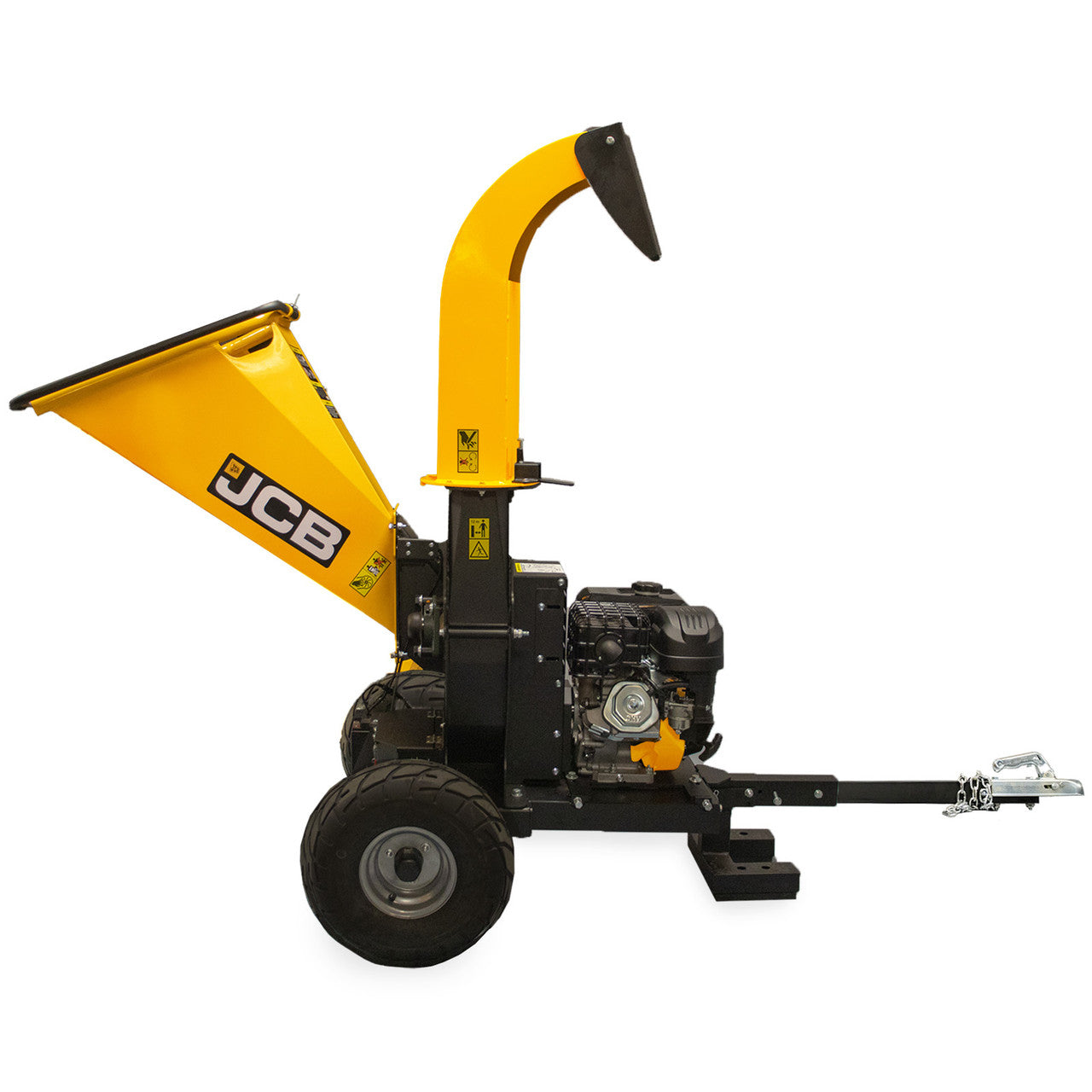

Our JCB-CH7150120PE petrol wood chipper is built with high quality robust materials to cope with chipping of logs up to 120 mm / 4.72” in diameter. With an ATV tow mount, this is ideal for anyone managing woodland or shrub on estates, farms, construction sites, roadways, pathways or general large garden tidy up. (Note, this is not road towable).

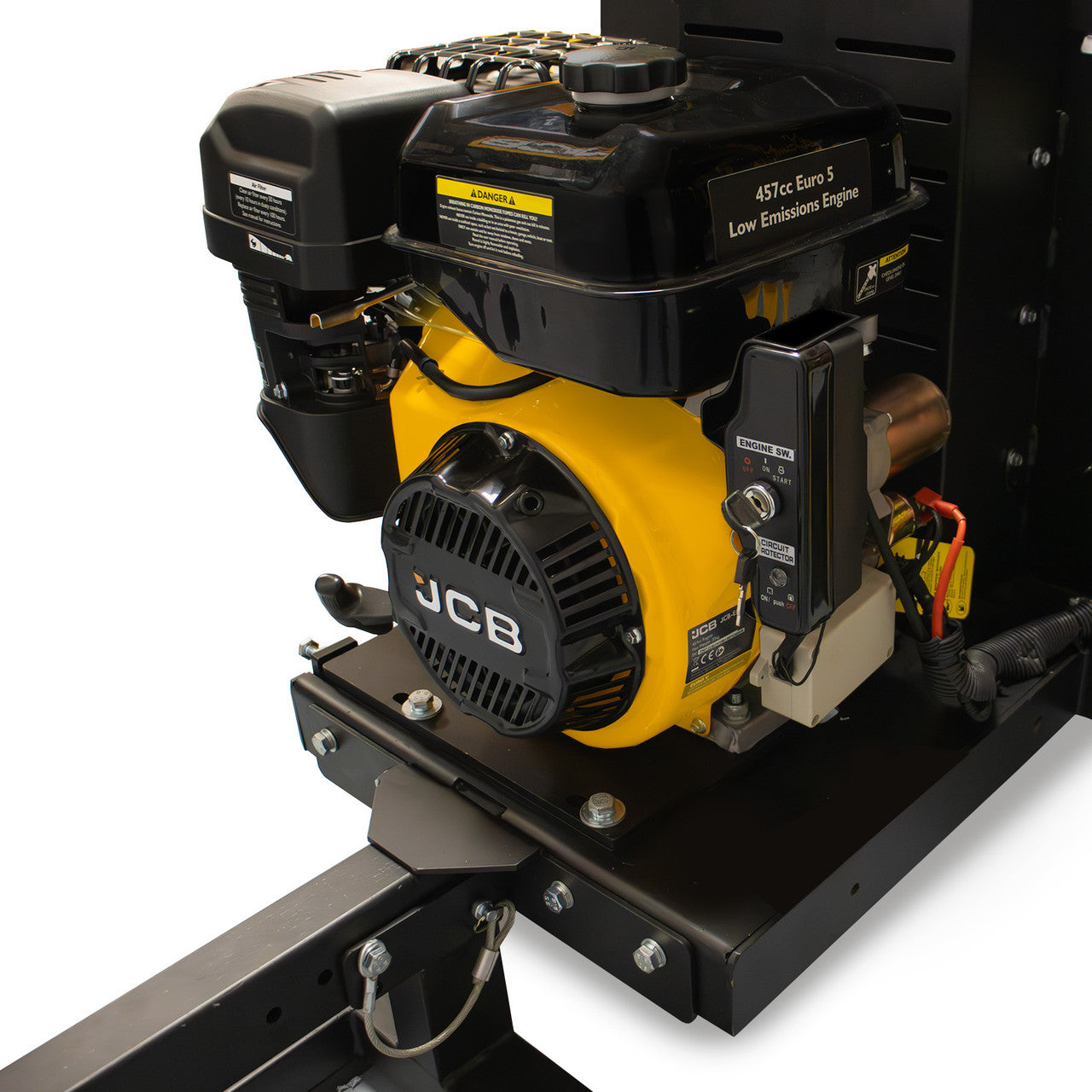

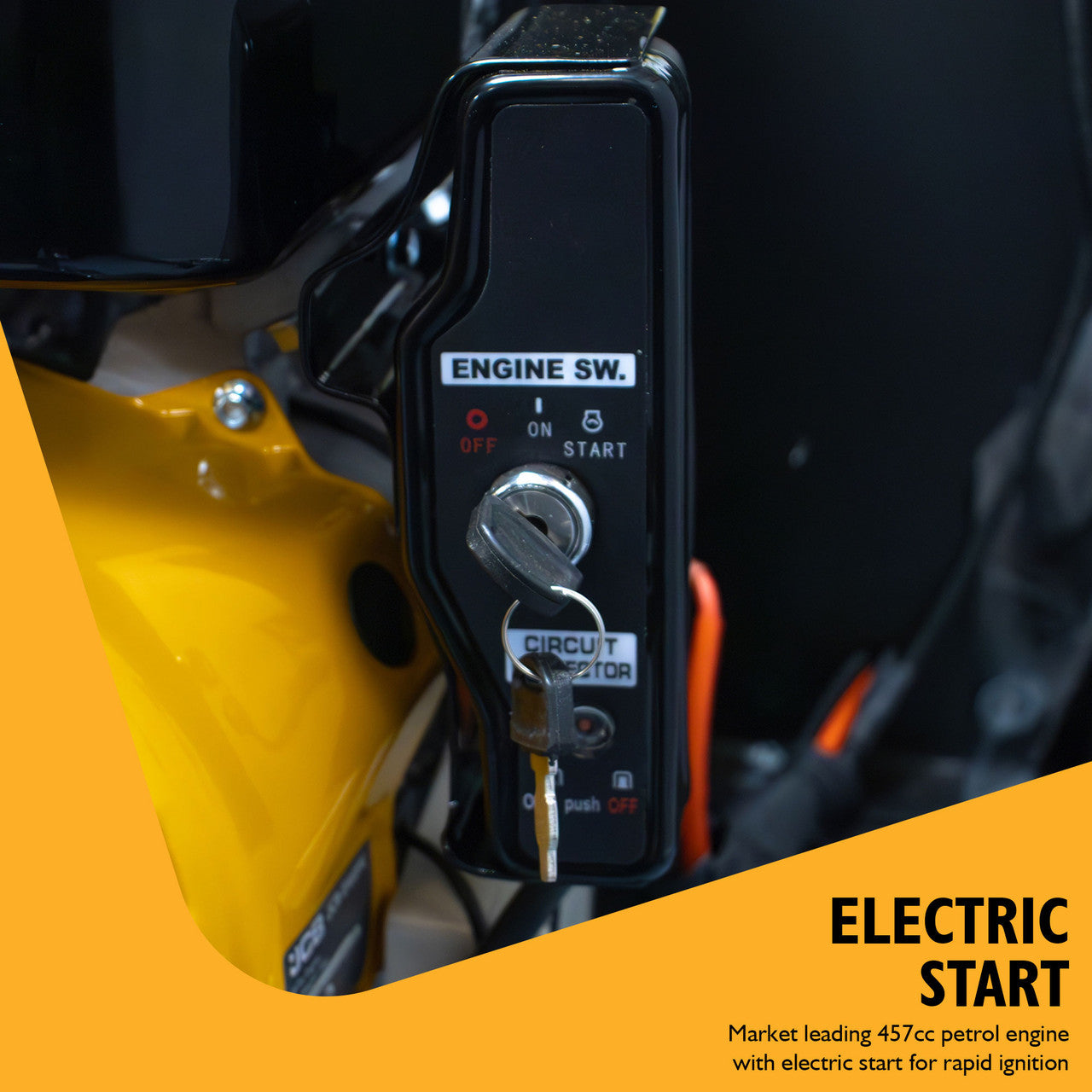

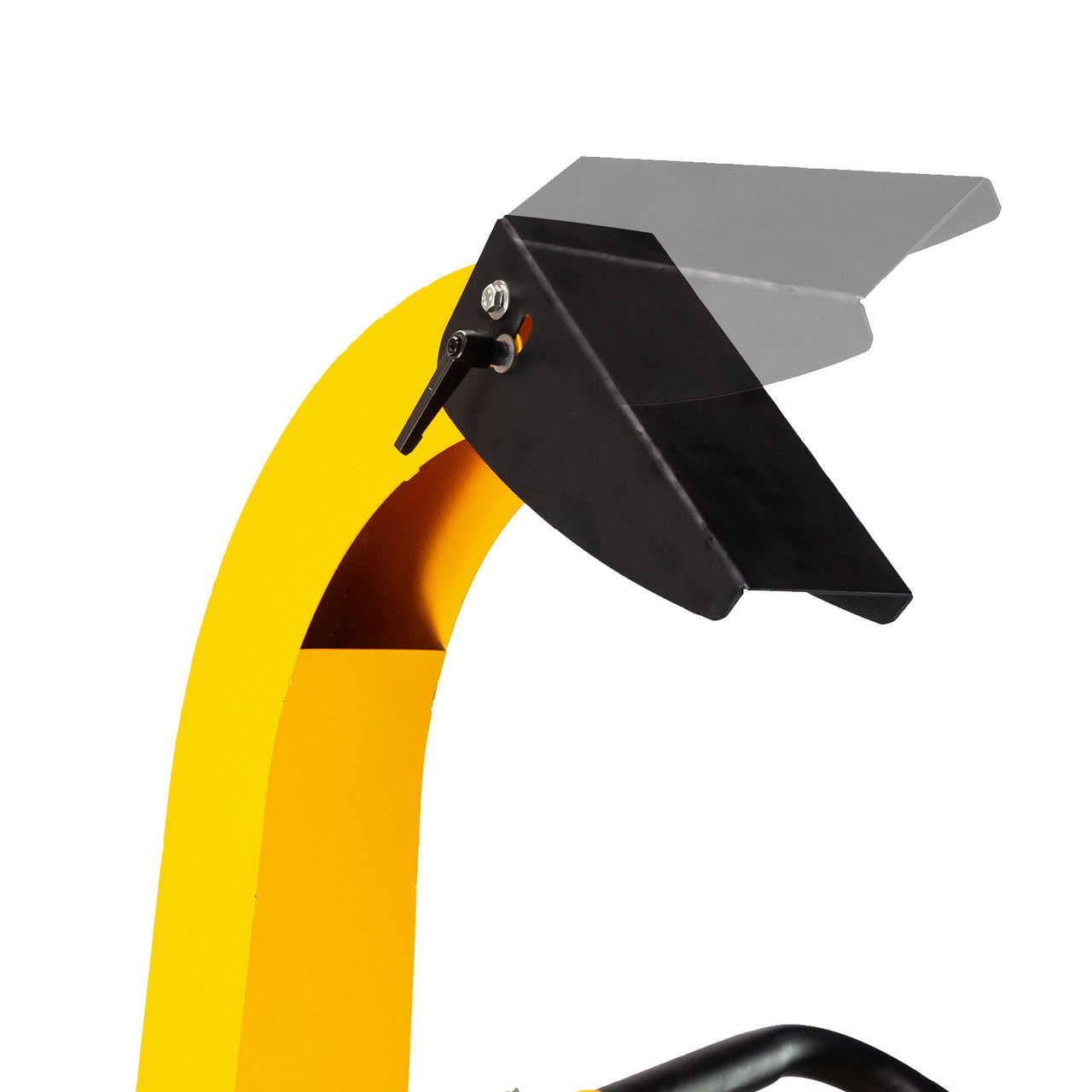

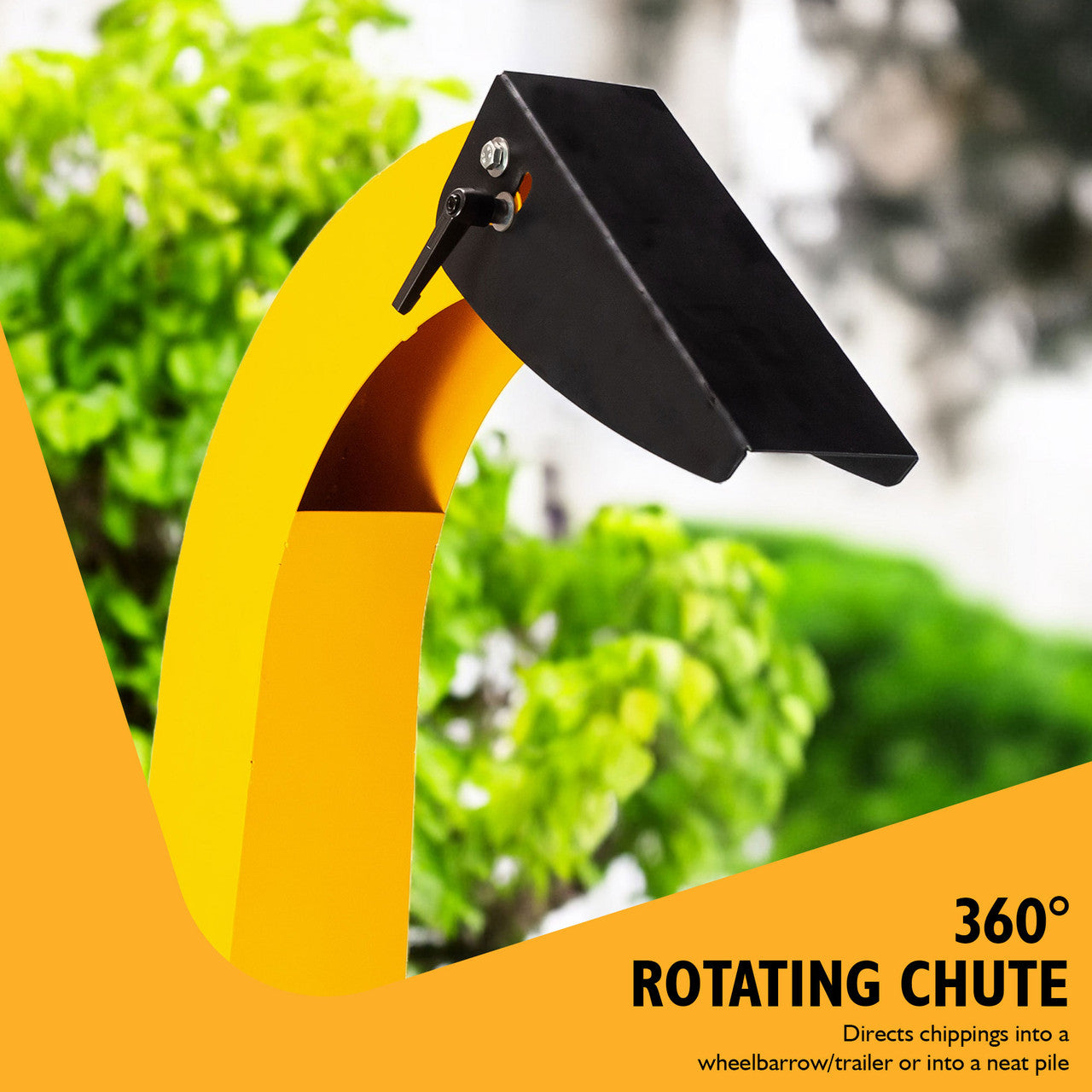

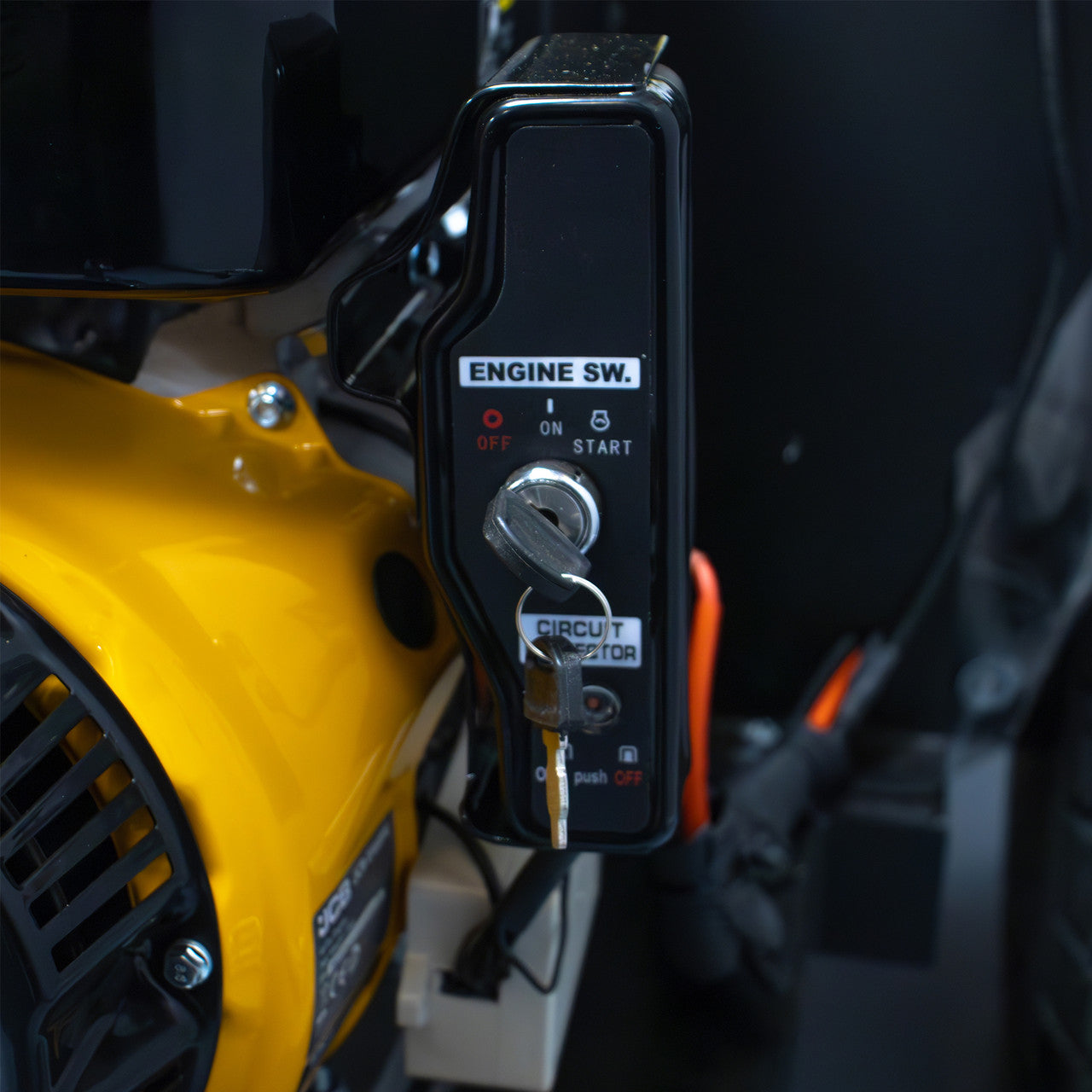

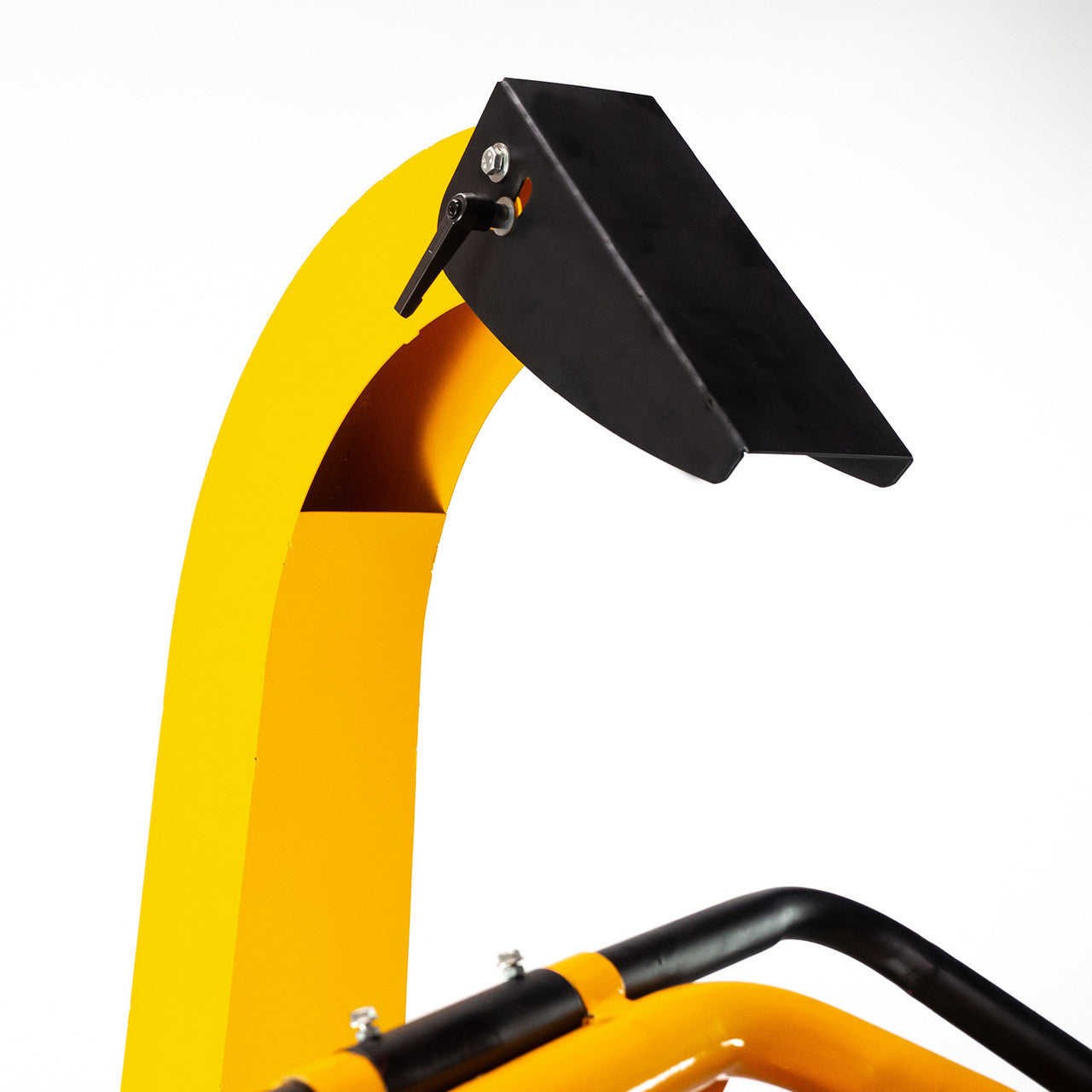

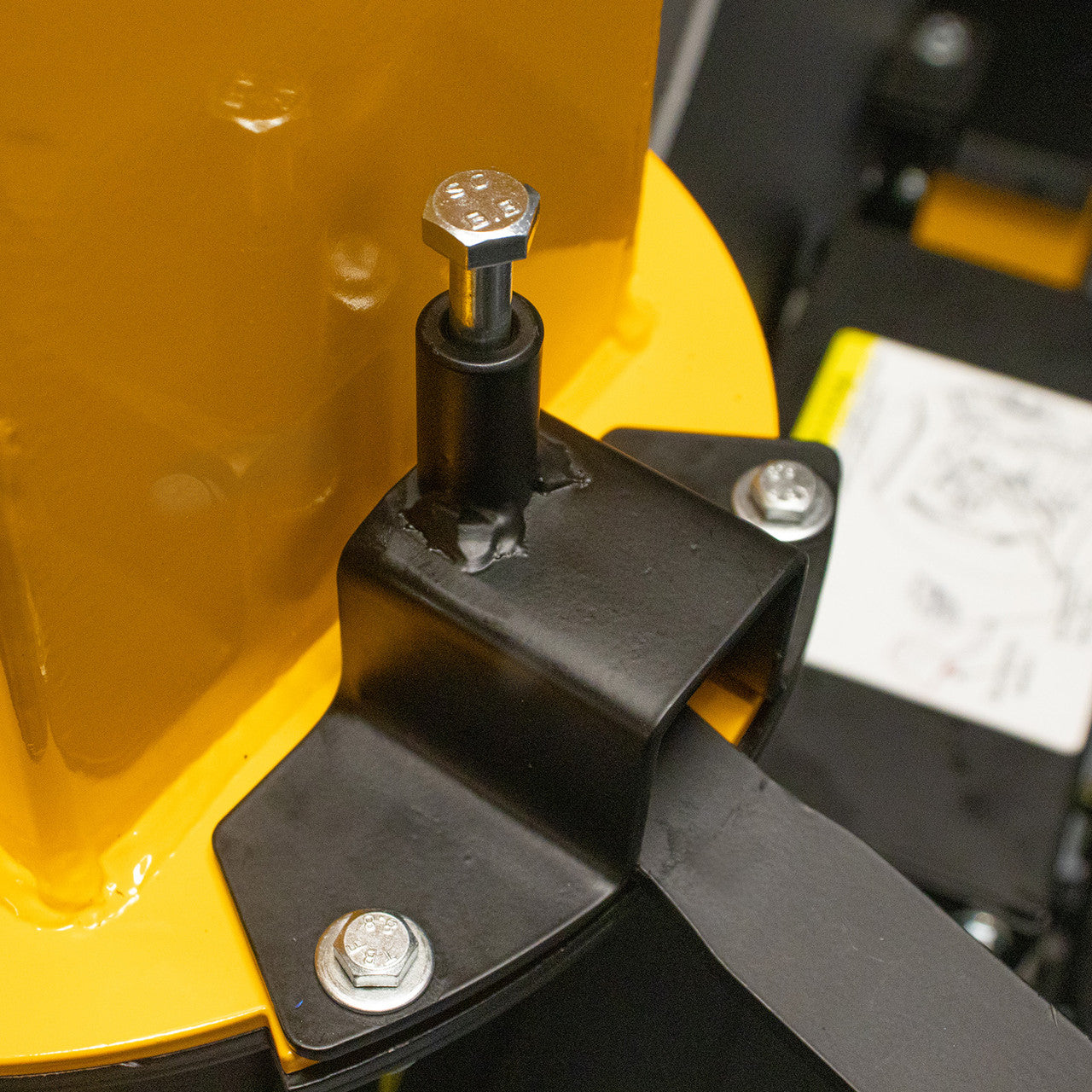

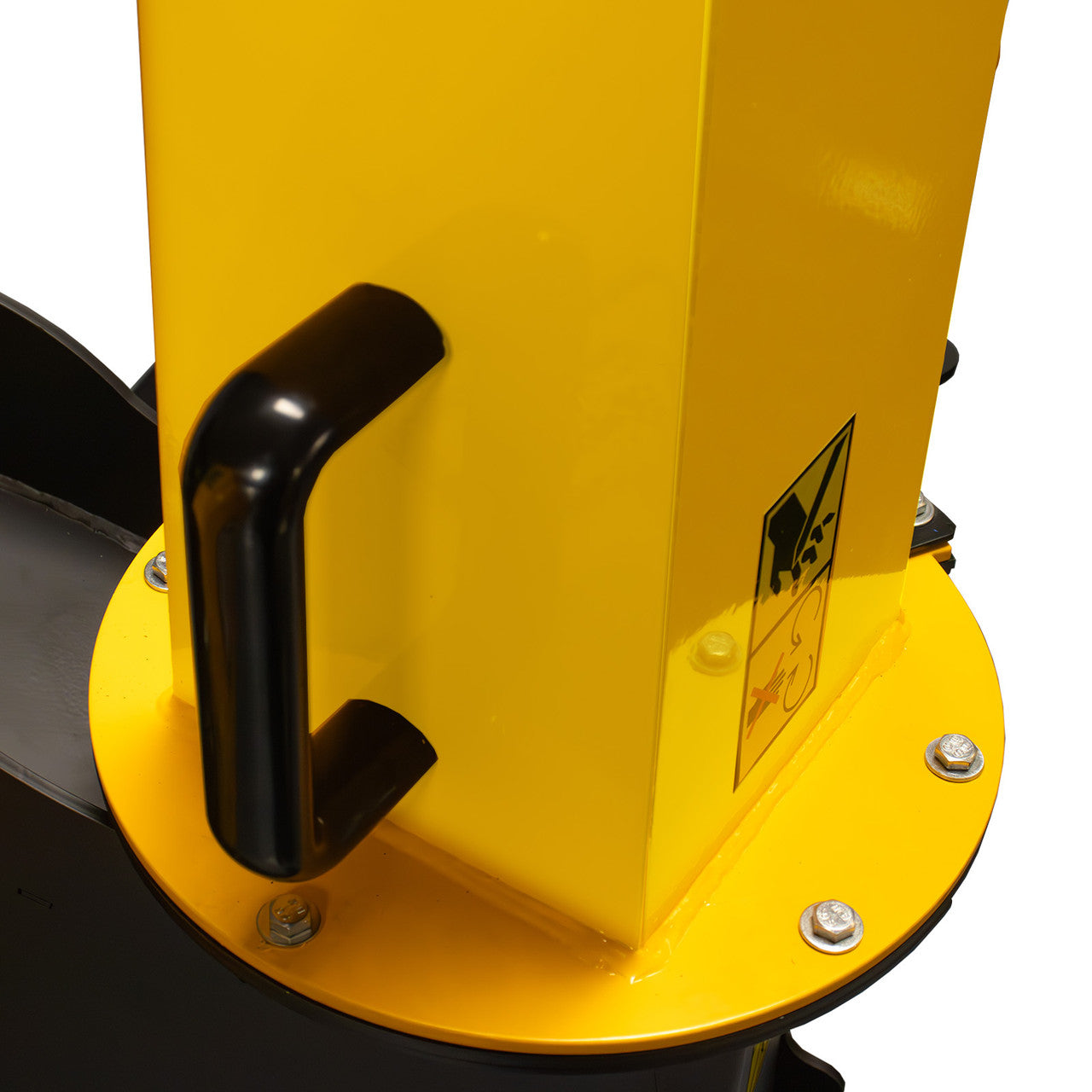

Powered with a market-leading 15hp 4 stroke JCB petrol Engine with electric start, and designed with a 360° rotating outlet chute and guide, it’s ideal to use when chipping wood into trailers, for compost, mulch or simply mulching the chippings prior to transportation.

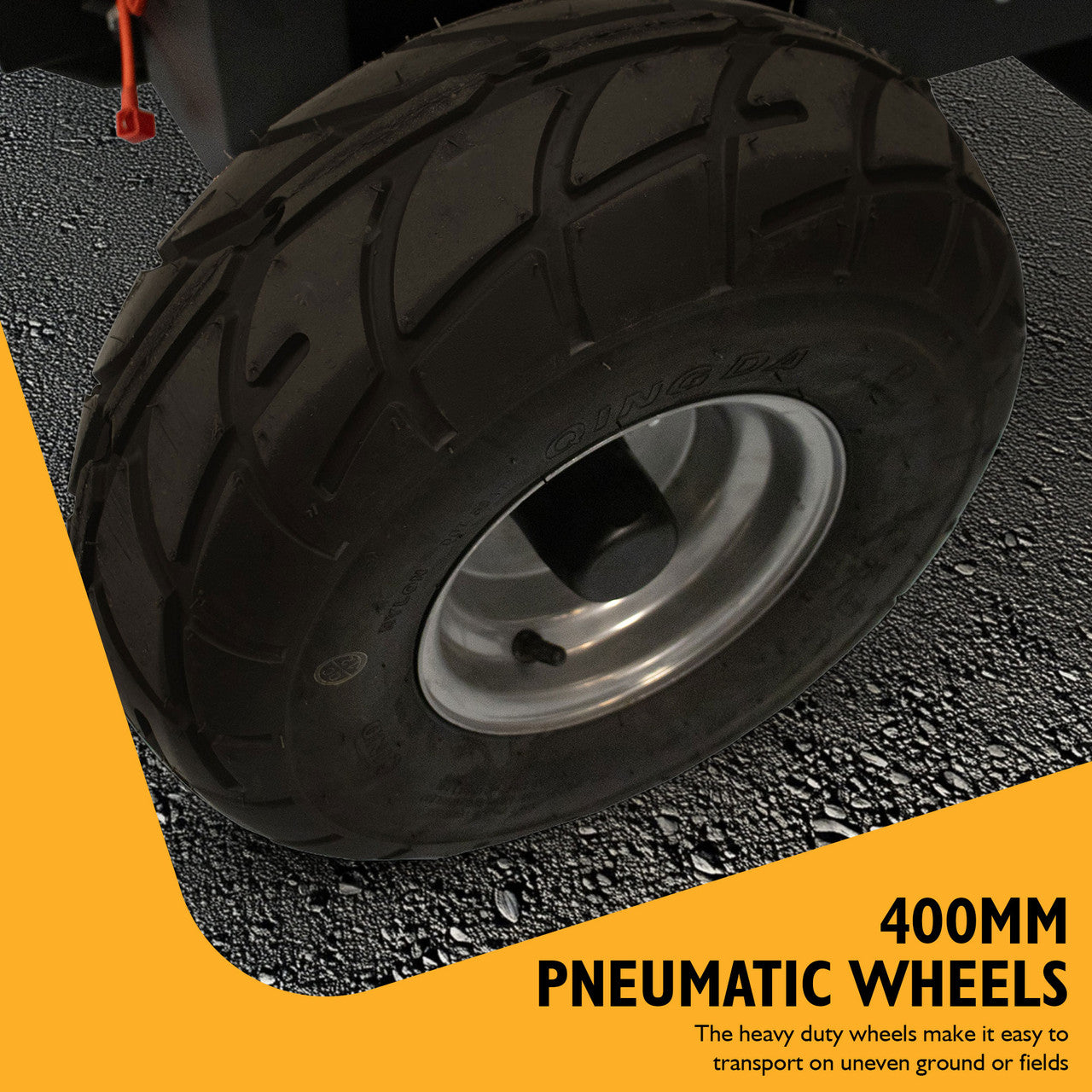

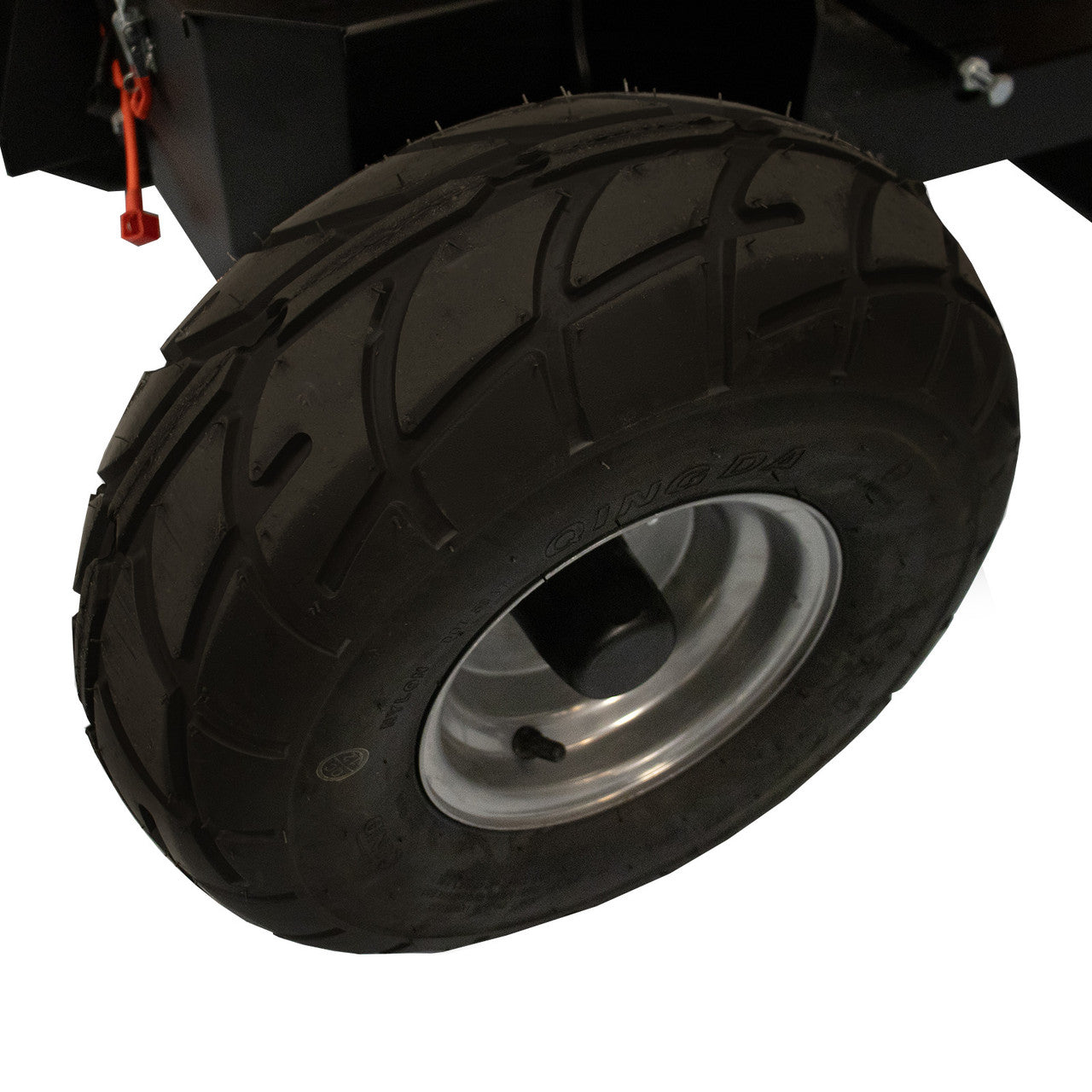

The heavy duty 16 Inch pneumatic wheels make it easy to transport on uneven ground or fields and the twin reversible blades can rapidly chip cumbersome pieces of wood ready to be used for the chosen application.
The JCB-CH150120PE comes with a 3 year domestic and 1 year commercial warranty, subject to terms.
3 Year Warranty (Terms Apply)
Important:
If using E10 Petrol, this product must be used with high-quality unleaded fuel ONLY. ALWAYS use automotive petrol/gasoline suitable for four-stroke engines
DO NOT mix fuel and oil.
It is recommended to use E10 (95 RON) automotive fuel, with an appropriate additive or stabiliser in this product.
Damage caused by failure to add fuel or using incorrect or poor-quality fuel is not covered by your warranty.
Caution:
E10 petrol is hygroscopic and attracts moisture, which may damage the fuel system if stored in the product for more than four weeks.
After draining the fuel tank, always run the engine until the last of the fuel in the system is spent and drain the float bowl when the engine is cool.
E10 petrol should be used within 30 days of purchase.
Some petrol brands contain other quantities of ethanol. DO NOT use fuels with more than 10% ethanol in your product.
Always store and dispose of fuels responsibly and in accordance with local regulations.
Specifications
| Model | JCB-CH150120PE |

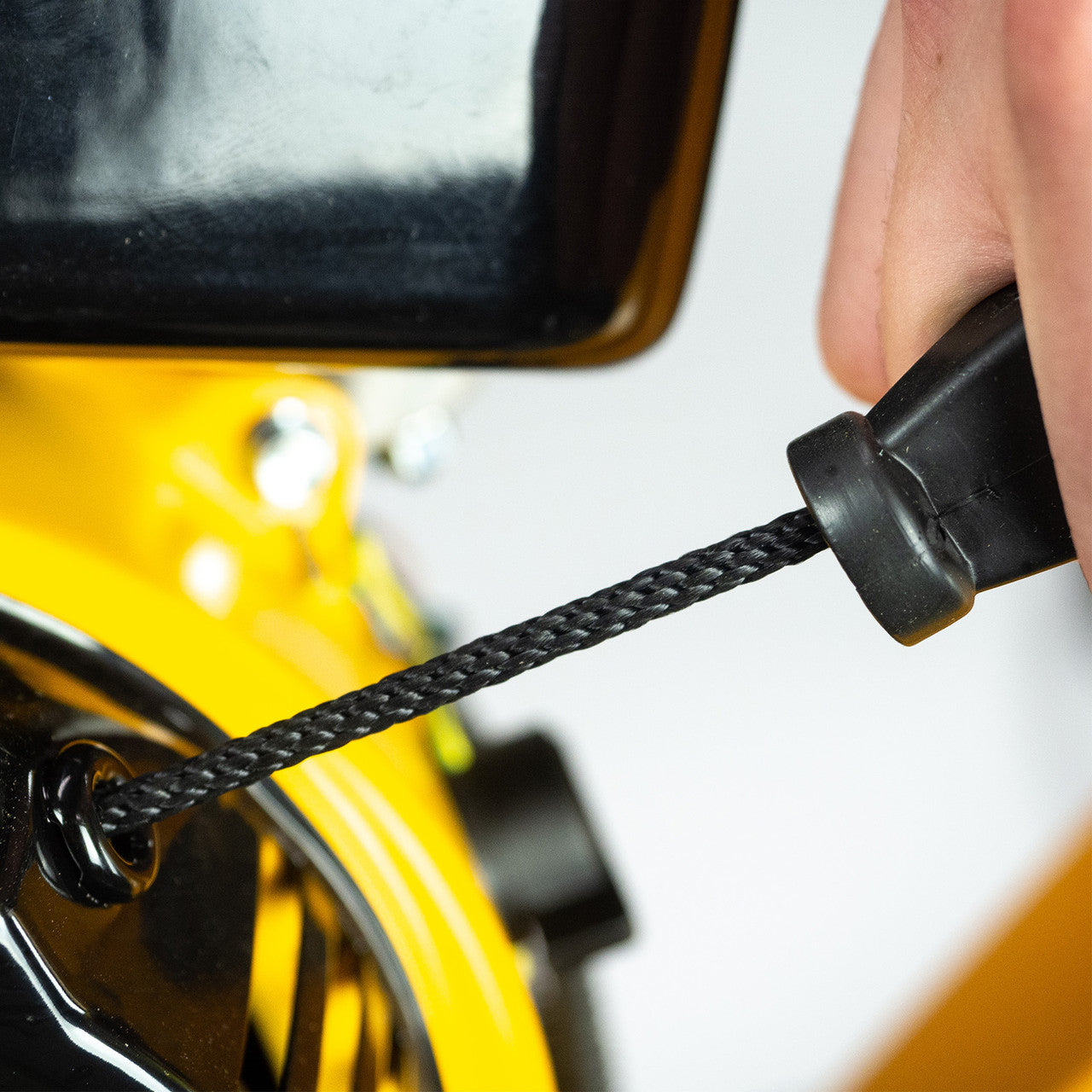

| Start Method | Recoil and Electric Start |
| Drive Type | Belt Drive |
| Chipping Capacity (mm) | 120 |

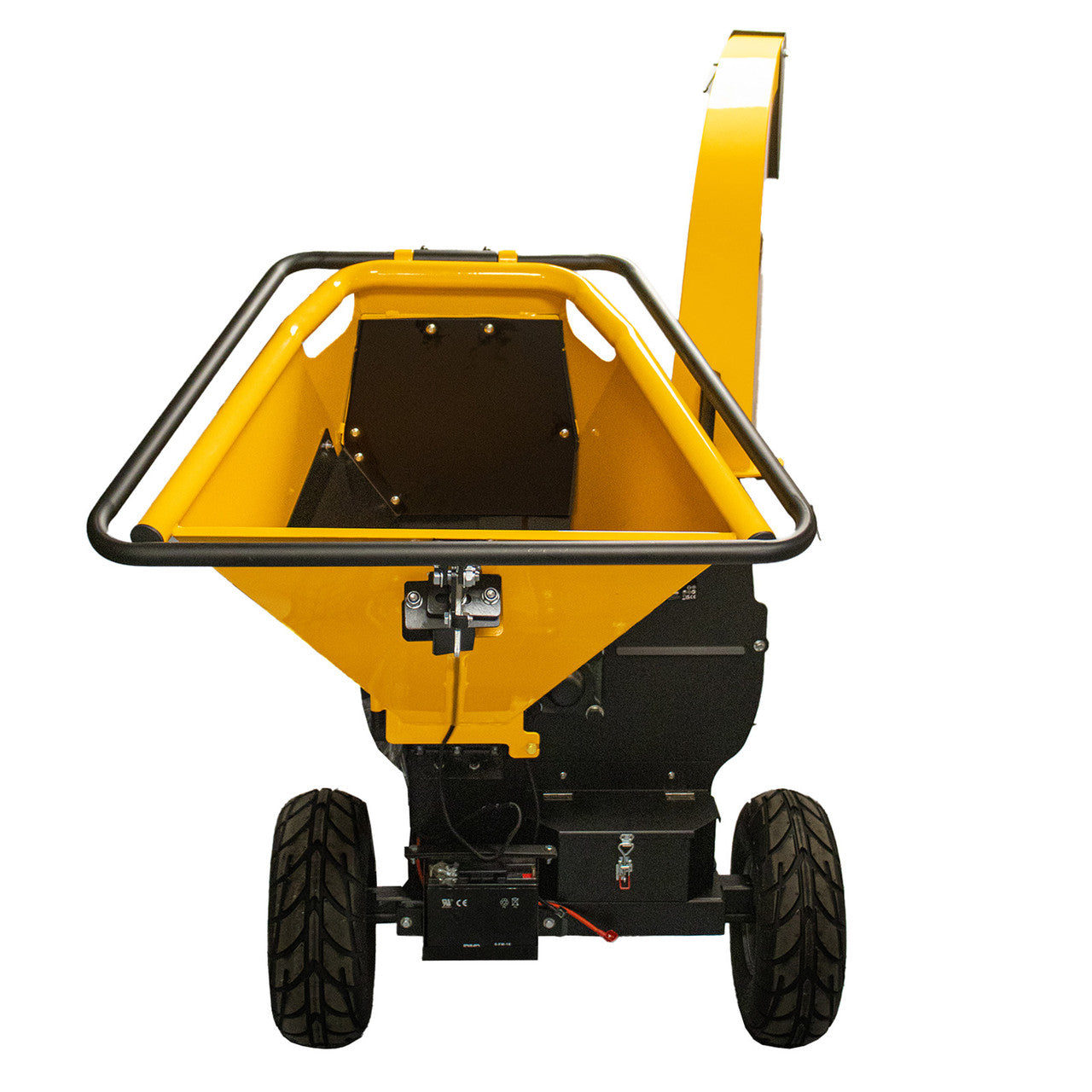

| Feed Hopper Opening Size (mm) | 588 x 440 |
| Infeed Throat Opening Size (mm) | 278 x 167 |
| Disc Size (mm) (Diameter / Thickness) | 600 |
| Knives | 2+6 |
| Safety Features | Emergency switch |
| Engine Model | JCB-E460PE |
| Engine Type | 4 Stroke OHV Single Cylinder |
| Engine Size (cc) | 457 |
| Rated Power (hp) | 15 |
| Max Engine Output (hp) | 15 |
| Disc Speed (RPM) | 1800 |
| Engine Oil | SAE 30 or 15W40 |
| Fuel Capacity (L) | 6.5 |
| Gross Weight (kg) | 294 |
| Engine Oil Capacity (ml) | 1100 |
| Tyres | Pneumatic |
| Net Weight (kg) | 260 |
| Wheel Diameter (mm) | 400 |
| Sound Level (db) | 120 |
| Product Dimensions (H x W x L) (mm) | 1730 x 980 x 2760 |
| Package Dimensions (H x W x L) (mm) | 1160 x 1860 x 1140 |
| Fuel / Power Source | Petrol |
| Commercial Warranty (years) | 1 |
| Wheel Size (inches) | 16 |
| Wheel Size (Inches) | 16 |
| Warranty (years) | 3 |
| Warranty (Years) | 3 |
